상세 정보 |
|||
| 화소 피치: | 피치 6 밀리미터 | 방법을 몰기: | 1/8의 검사 |
|---|---|---|---|
| 내각 해결책: | 96*96 화소 | 패널 사이즈: | 576*576mm |
| 보호 수준: | IP65 | 밝기: | 5500 알 |
| 표시 기능: | 생기 | 화면 차원: | 맞춤형 |
| 하이 라이트: | P6mm 야외 주도하는 광고 방송 디스플레이,IP65 큰 옥외 광고 스크린,IP65 야외 주도하는 광고 방송 디스플레이 |
||
제품 설명

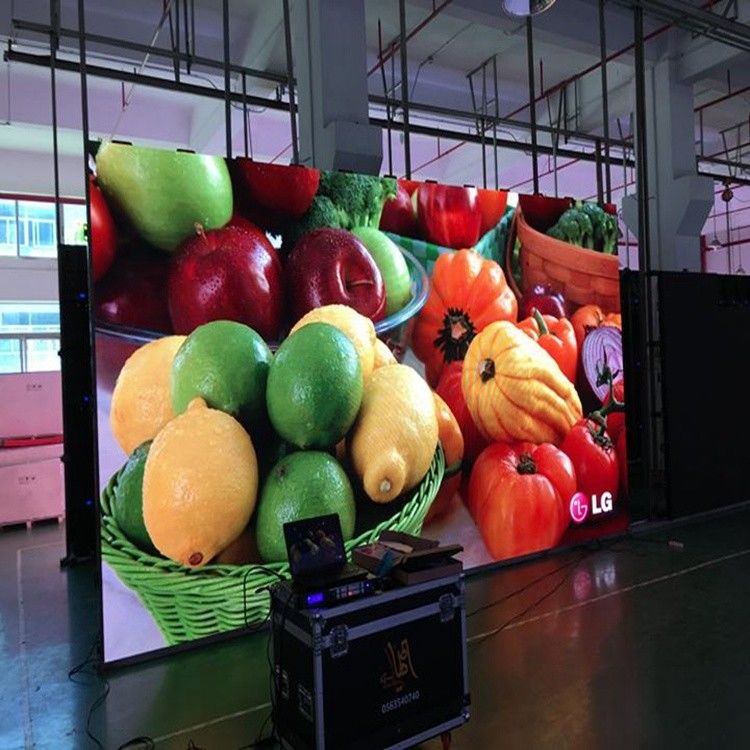

Big Outdoor Advertising Screen Big Ad Display P6 Outdoor Led Screen
Our Goal is to provide our customers with the best LED solutions for their needs,
with many years of LED Production experiences.
Add a welcome charming modern touch to your Advertising with this high-quality Led Sign!
led advertising message signs is widely used in shopping malls, hairdressers,
beauty chain stores, restaurants, bars, parking lots,
entertainment venues ect and suitable for all kinds of indoor and outdoor commercial billboards.

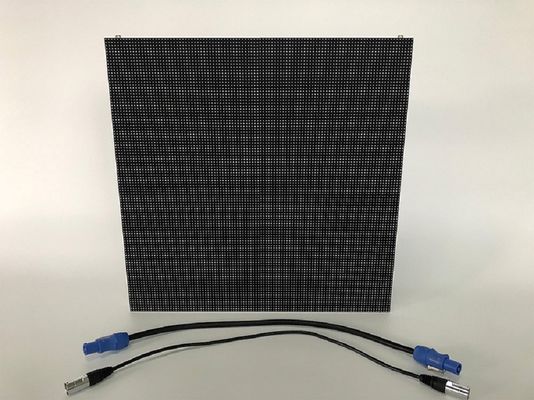

* P6mm LED Display Screen Panel
* Panel Size: 576*576mm/1.89*1.89feet
* Panel Resolution: 96*96pixel
* Panel Materials: Die casting aluminum
* Seamless connection, high contrast ratio, high refresh rate, 16 bit high gray level.
* Power cable and signal cable for free.
LED Display Parameter
| Item | Technical parameter | |
| Panel | Dimension | (W)192mm*192mm(H) |
| Pixel pitch | 6mm | |
| Pixel Density | 27777dots/ M2 | |
| Pixel configuration | 1R1G1B | |
| LED specification | SMD3535 | |
| Pixel resolution | (W)32 dots*32dots(H) | |
| Average power | 10W | |
| Panel weight | 0.37KG | |

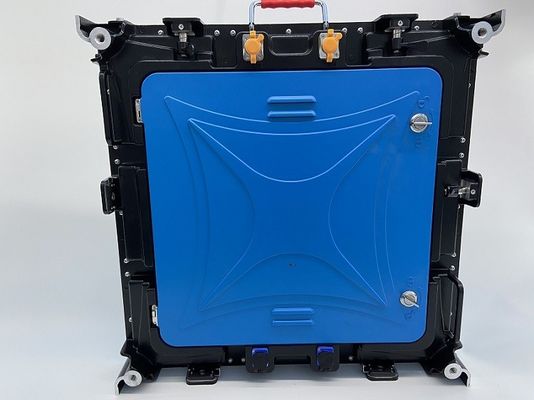

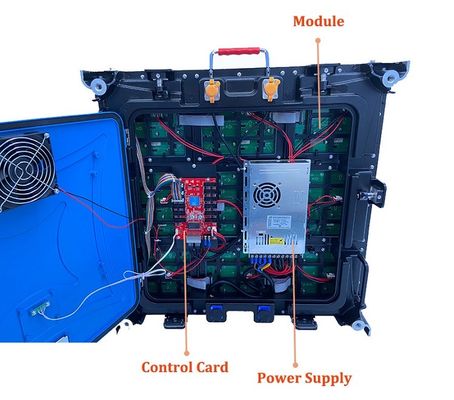

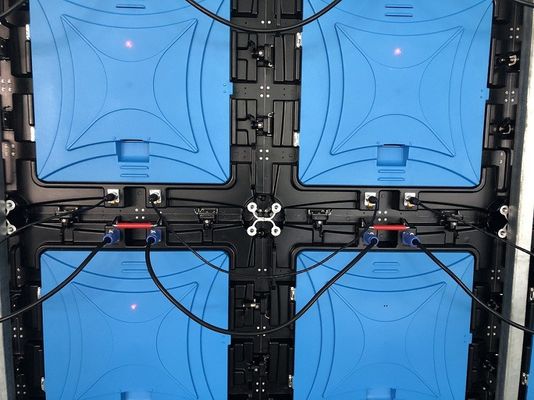

| Cabinet&Bracket | Cabinet size | 960mm*960mm |
| Quantity of panel | 27.126PCS/M2 | |
| Best viewing angle | H:>170 V:>120 | |
| Best viewing distance | 6-100M | |
| Working temperature | -25 -- +55 | |
| Panel power supply | 5V40A | |
| Screen power supply | AC220V—AC250V | |
| Max power | 600W/M2 | |
| Average power | 300W-500W/M2 | |
| Technical parameter | Driving device | 16206 Constant current drive |
| Drive type | 1/8 Scanning | |
| Refresh frequency | 1920HZ/S | |
| Display color | 4096*4096*4096 | |
| Brightness | 6000-7000cd/ M2 | |
| Life span | 100000Hours | |
| Communication distance | 100M | |
1. The first level LED chip from Taiwan Epistar
2. With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Stainless steel screws when assembly
6. Disassembly and assembly are quick and easy
7. 3 to 5 years warranty
8 .Energy-saving 60% : driving with low frequency current, heat-dissipated roller fans with automatic temperature-controlling device.
9 .Life time >11 years;
FQA:
Q1. Can I have a sample order for the LED display?
A: Yes, we welcome sample order to test and check quality. Both for the module or the whole screen.
Q2. What about the lead time?
A: Order less than 100 square meters led time to take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A: Low MOQ, 1 square meter or a module checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accept the FOB train term, but we can help you order and arrange a shipping agent. It usually takes 20 30 days on the sea. a few days for customs clearance
